Tracking through a simple lattice

In this example, we create a custom lattice and track a beam through it. We start with some imports.

import matplotlib.pyplot as plt
import torch

import cheetah

Lattices in Cheetah are represented by Segments. A Segment is created as follows.

segment = cheetah.Segment(
    elements=[
        cheetah.Drift(length=torch.tensor(0.175)),
        cheetah.Quadrupole(length=torch.tensor(0.122), name="AREAMQZM1"),
        cheetah.Drift(length=torch.tensor(0.428)),
        cheetah.Quadrupole(length=torch.tensor(0.122), name="AREAMQZM2"),
        cheetah.Drift(length=torch.tensor(0.204)),
        cheetah.VerticalCorrector(length=torch.tensor(0.02), name="AREAMCVM1"),
        cheetah.Drift(length=torch.tensor(0.204)),
        cheetah.Quadrupole(length=torch.tensor(0.122), name="AREAMQZM3"),
        cheetah.Drift(length=torch.tensor(0.179)),
        cheetah.HorizontalCorrector(length=torch.tensor(0.02), name="AREAMCHM1"),
        cheetah.Drift(length=torch.tensor(0.45)),
        cheetah.Screen(name="AREABSCR1"),
    ]
)

Alternatively you can load lattices from Cheetah’s variant of LatticeJSON or convert them from an Ocelot cell

lattice_json_segment = cheetah.Segment.from_lattice_json("lattice_file.json")
segment = cheetah.Segment.from_ocelot(cell)

Note that many values must be passed to lattice elements as torch.Tensors. This is because Cheetah uses automatic differentiation to compute the gradient of the beam position at the end of the lattice with respect to the element strengths. This is necessary for gradient-based magnet setting optimisation.

Named lattice elements (i.e. elements that were given a name keyword argument) can be accessed by name and their parameters changed like so.

segment.AREAMQZM1.k1 = torch.tensor(8.2)
segment.AREAMQZM2.k1 = torch.tensor(-14.3)
segment.AREAMCVM1.angle = torch.tensor(9e-5)
segment.AREAMQZM3.k1 = torch.tensor(3.142)
segment.AREAMCHM1.angle = torch.tensor(-1e-4)

Cheetah has two different beam classes: ParticleBeam and ParameterBeam. The former tracks multiple individual macroparticles for high-fidelity results, while the latter tracks the parameters of a particle distribution to save on compute time and memory.

You can create a beam manually by specifying the beam parameters of a Gaussian distributed beam

parameter_beam = cheetah.ParameterBeam.from_twiss(beta_x=torch.tensor(3.14))
particle_beam = cheetah.ParticleBeam.from_twiss(
    beta_x=torch.tensor(3.14), beta_y=torch.tensor(42.0), num_particles=10_000
)

or load beams from other codes and standards, including openPMD, Ocelot and Astra.

astra_beam = cheetah.ParticleBeam.from_astra(
    "../../tests/resources/ACHIP_EA1_2021.1351.001"
)

In order to track a beam through the segment, simply call the segment’s track method.

outgoing_beam = segment.track(astra_beam)

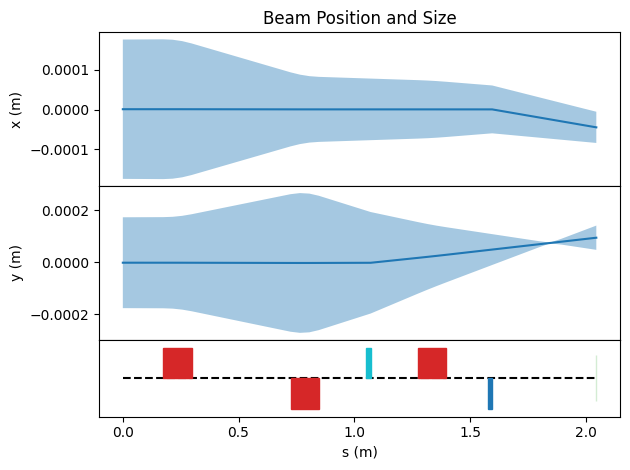

You may plot a segment with reference particle traces by calling

segment.plot_overview(incoming=astra_beam, resolution=0.05)
plt.show()

where the keyword argument incoming is the incoming beam represented by the reference particles.

You can also visualise your segment in 3D. Note that this requires that you installed Cheetah as pip install cheetah-accelerator[3d].

Use mesh.show to view the mesh and mesh.export to export it to a file.

mesh, _ = segment.to_mesh(
    cuteness={cheetah.HorizontalCorrector: 2.0, cheetah.VerticalCorrector: 2.0}
)
mesh.show()
